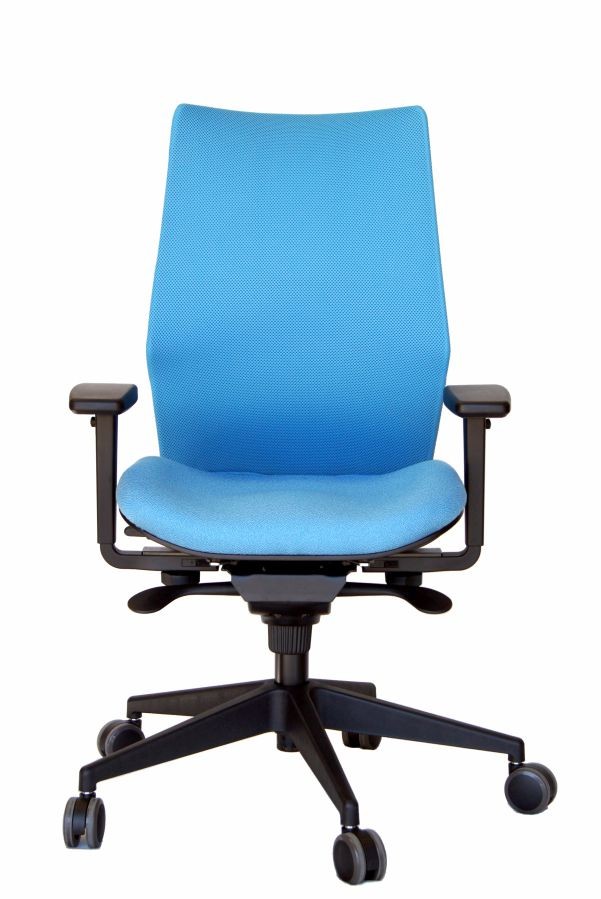

XANA

Extreme ergonomics

The XANA model is an operational chair with high ergonomic benefits and a very good price / quality ratio. Three backrest versions are available: with S.A.L. system, with mesh and with molded and upholstered foam backrest.

Adjustable armrests 2DL and 4DL.

Its synchronous mechanism of proportion 1º / 2,3º has stop multiposition and adjustment of the tension of rocking according to the weight of the user (Between 45 Kgs and 120 Kgs) with lower actuation.

The mechanism has a shockproof security system of the folder.

Height adjustment of the backrest using pneumatic column. Lumbar support adjustable in height. Swivel base with five branches in fiberglass reinforced polyamide with 65 mm soft wheels.

The XANA model is designed according to UNE-EN 1335-1: 2001, -2: 2009, 3: 2009 and UNE-EN ISO 9241-5: 1998. Fulfills the requirements of RD 488/1997.

Our model XANA obtained a result "Very satisfactory" in the ergonomic study of the Biomecanic Institute of Valencia. (IBV)



Discover the different versions of Xana

S.A.L. Version

Upholstered

The backrest is adjustable in height with 6 different positions, direct handling without the need for buttons. Allows lateral torsion of the backrest providing a greater dynamism of the sitting position.



  • Xana SAL

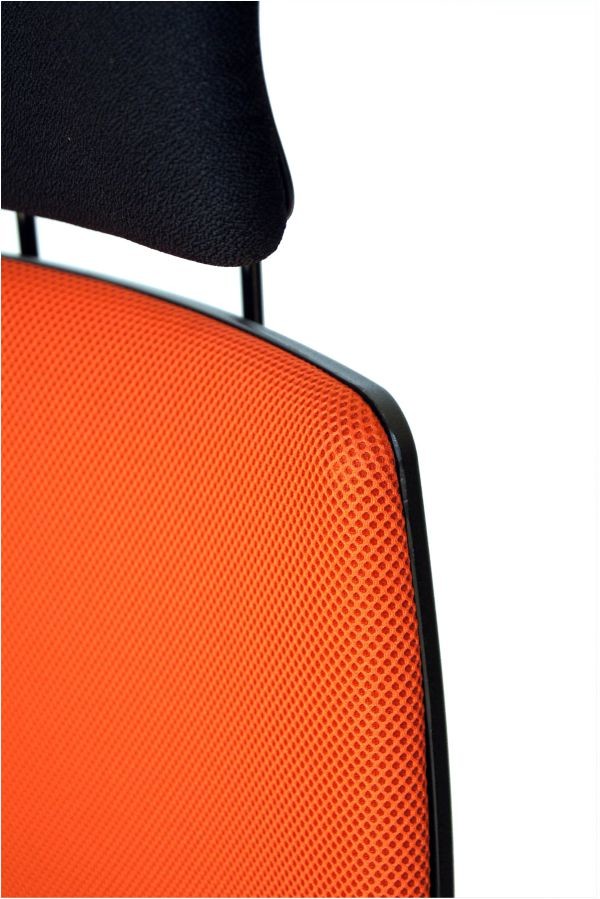

3D Mesh

Upholstered with a three-dimensional mesh that adapts dynamically to the user, maintaining a correct support. This system creates an air space that retains the elasticity and breathability of mesh backs, while maintaining the S.A.L.

The file presents the Lumbar Support Tracking System (S.A.L. in Spanish). This technological innovation avoids the "pull-shirts" effect, keeping an exact and continuous point of contact between the back of the user and the back of the chair.



Mesh Backrest

The backrest has a controlled elasticity that allows the rotation of the back at certain times thanks to the design of the support of the same. Its shape favors a straight and stable posture of the spine. In addition, the lumbar support can adapt to the height desired by the user.

The self-supporting elastic mesh backrest adapts dynamically to the different user profiles, keeping a correct support and allowing a great breathability.

Upholstered injected foam version

Like the mesh model, the back has a controlled elasticity that allows the rotation of the back thanks to the design of its fixation. The molded foam backrest on a metal frame offers greater comfort and can be upholstered with all our different fabrics, so that it can adapt to all types of environments and needs. It has a system of lumbar support adjustable in height.

E.S.D

Our XANA-ESD model has been designed and developed to meet the requirements of EN 61340 5-1 by adapting its design and integrating the various specially selected elements. In this way we have a work chair prepared for areas protected against electrostatic charges without losing the ergonomic excellence of the model.



Download all documents of our model Xana

Catalogue
Instructions
Technical sheet
Technical sheet ESD
Recyclability
Mesh 3D
Upholstered 3D
